Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts
-
1/32 - Initial presentation of failing post retained crown with previous history of failed apicectomies and amalgam tattooing and scar tissue
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
2/32 - Patient is generally fit and well and concerned about the aesthetic failure of the upper left central incisor
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
3/32 - Preoperative X-ray
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
4/32 - Removal of failing tooth at UL1 and socket grafted with Platelet Derived Growth Factor to improve soft tissue quality
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
5/32 - Removal of failing tooth at UL1 and socket grafted with Platelet Derived Growth Factor to improve soft tissue quality
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
6/32 - Removal of failing tooth at UL1 and socket grafted with Platelet Derived Growth Factor to improve soft tissue quality
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
7/32 - Immediate denture fitted
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
8/32 - At 8 weeks later the soft tissue was reviewed and healing well
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
9/32 - CT scan shows vertical and horizontal ridge defect
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
10/32 - Two weeks later the bone ring technique was employed to place a Straumann BLT 12mm fixture and maxgraft® bonering
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
11/32 - Preparation of defect site
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
12/32 - Preparing the ring bed with trephine
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
13/32 - Preparing the ring bed with planator
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
14/32 - Placing the maxgraft® bonering
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
15/32 - Inserting a Straumann BLT 12 mm implant
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
16/32 - Applying cerabone® for resorption protection
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
17/32 - Applying Jason® membrane
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
18/32 - Suturing
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
19/32 - The denture tooth needed to be eased at the neck which demonstrated the increased height of vertical and horizontal bone
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
20/32 - postoperative X-ray
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
21/32 - maxgraft® bonering was left to heal uninterrupted for five months
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
22/32 - Then a small h shaped incision was used to expose the fixture head for a digital scan to be taken
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
23/32 - Then a small h shaped incision was used to expose the fixture head for a digital scan to be taken
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
24/32 - A temporary acrylic screw retained crown was made and fitted to develop a customised emergence profile
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
25/32 - A temporary acrylic screw retained crown was made and fitted to develop a customised emergence profile
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
26/32 - Temporary restoration
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
27/32 - After approximately six weeks to allow stabilisation of the soft tissue profile a new intraoral scan was taken to fabricate the definitive screw retained crown
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
28/32 - Definitive screw retained crown
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
29/32 - The case remains a relative aesthetic failure due to amalgam tattoo scarring but the patient is very happy
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
30/32 - Final smile
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -
31/32 - Final situation
Bone augmentation in the aesthetic zone with maxgraft® bonering – Dr. R. Cutts -

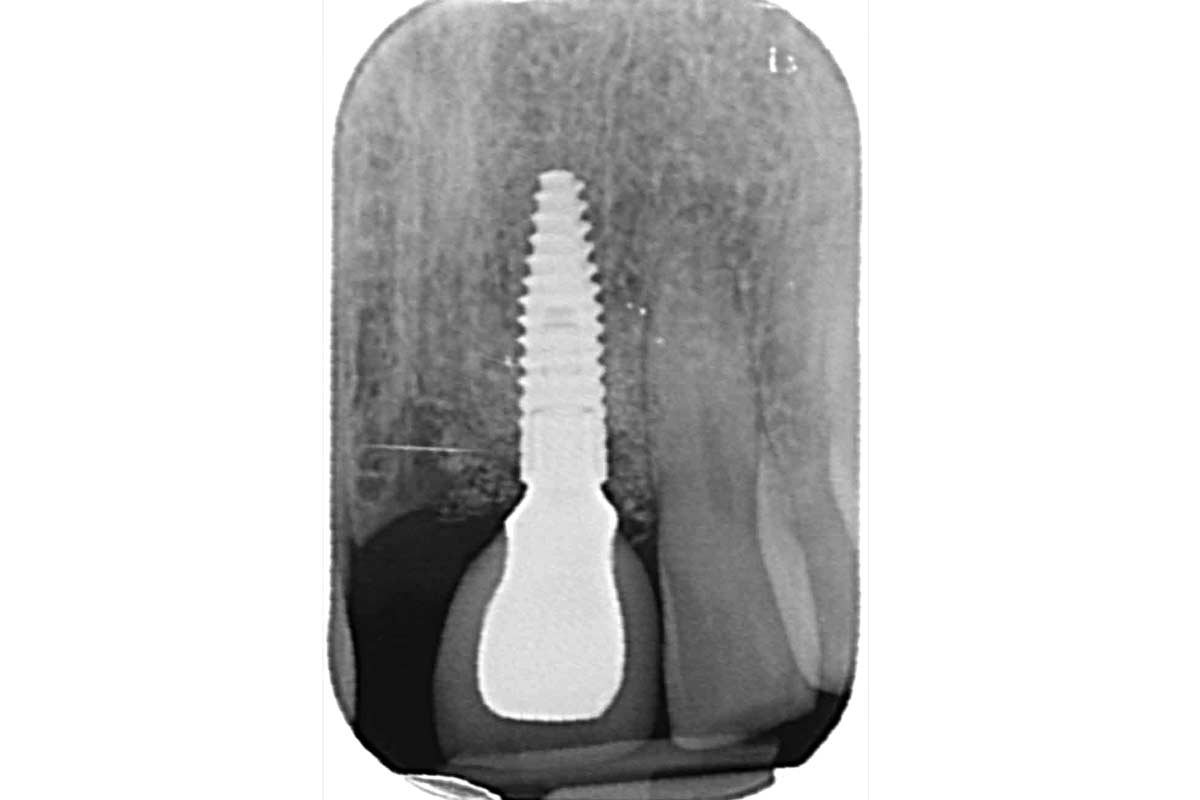

32/32 - Final x-ray
