GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva
-
1/27 - Initial situation after extraction of tooth 21 after 6 months
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
2/27 - Initial situation occlusal view: visible buccal bone loss
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
3/27 - Initial situation occlusal view: visible buccal bone loss
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
4/27 - Buccal bone loss in situ
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
5/27 - Osteotomy for implant position
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
6/27 - Placing the Straumann BLT implant 4.1 x 14 mm in an aesthetic manner
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
7/27 - maxgraft® cancellous granules
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
8/27 - Hydrated cerabone®
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
9/27 - Periosteal incision to release the mucogingival flap
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
10/27 - Template for membrane in situ
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
11/27 - Membrane to cut according to template
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
12/27 - GBR using layering technique: maxgraft® granules to cover the implant and cerabone® as following step
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
13/27 - Layer of cerabone® applied as resorption protection
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
14/27 - Occlusal view on augmented area
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
15/27 - Jason® membrane to cover the augmentation site and prevent soft tissue cells to proliferate into the site
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
16/27 - Sutured free of tension
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
17/27 - Healing after 12 weeks after placement RC healing abutment 5x4 was visible
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
18/27 - Prep for prosthetic restoration
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
19/27 - A temporary crown was built chair site
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -

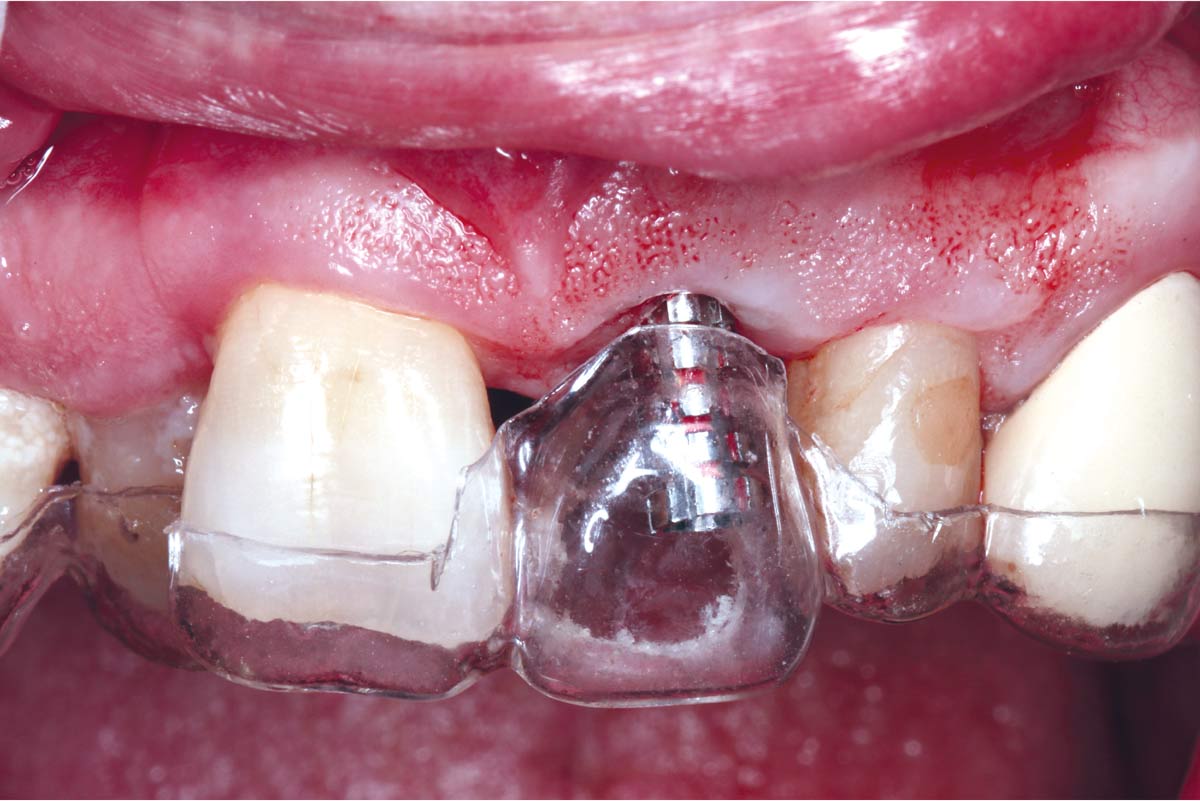

20/27 - Protemp shade A3 was used and the surgical guide to build it with an RC metal temporary abutment
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
21/27 - Shaping and polishing of the temporary crown
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
22/27 - After shaping gingiva with temporary crown site was ready for the integration of the final crown
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
23/27 - Screwn-retainable crown
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
24/27 - Occusal view after integration of the crown shows regenerated hard tissue on the buccal aspect
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
25/27 - CBCT scan was taken 20 weeks after placement showing 2.5 mm labial bone (with the temporary crown in place)
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
26/27 - CT shows 2.4 mm bone gain on the shoulder of implant for a long-term aesthetic outcome
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva -
27/27 - Final aesthetic result 24 weeks after implant placement
GBR using layering technique in aesthetic zone with maxgraft® and cerabone® -Dr. H. Maghaireh and Dr. V. Ivancheva
