Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn
-

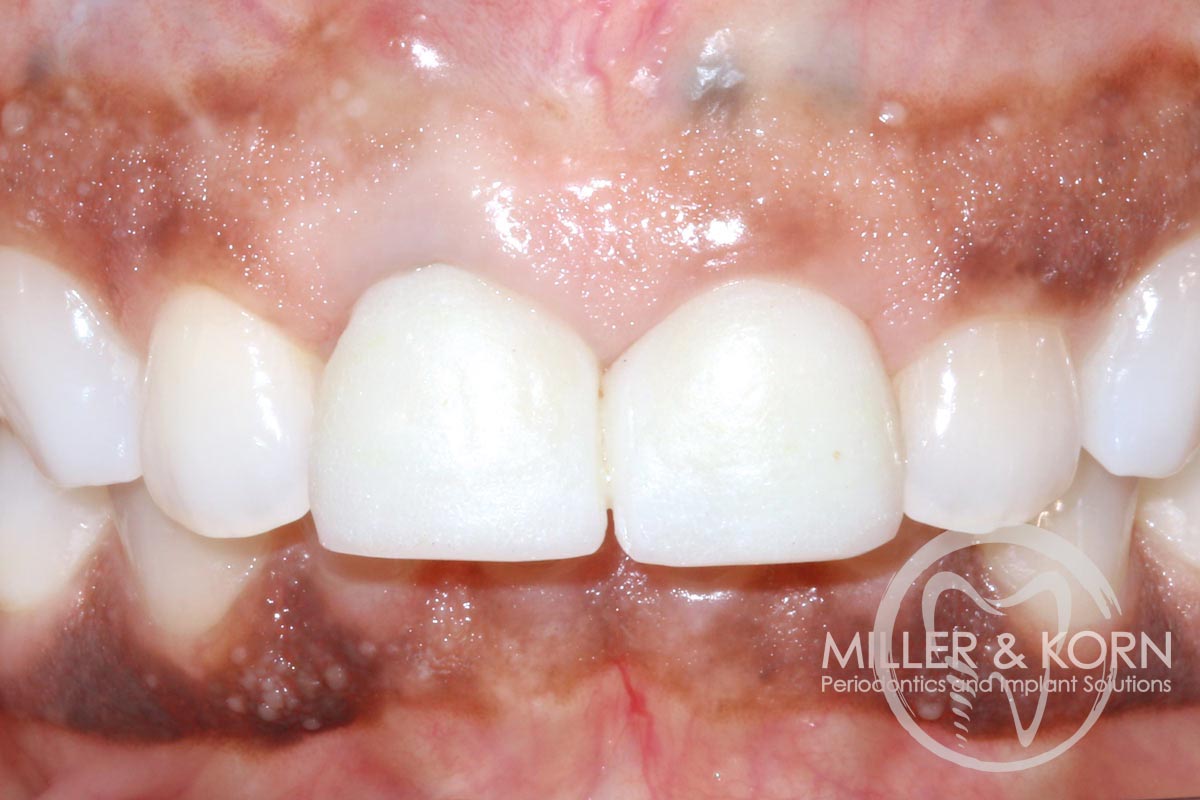

1/22 - 60-year-old female patient presented with a chronic infection on tooth #11. Since she has a high lip line matching the gingival margins of the adjacent central incisor and creating a root eminence is extremely important. For these reasons, the treatment of choice was an allograft bone ring enabling immediate placement of the dental implant with simultaneous regeneration of her ridge.
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -

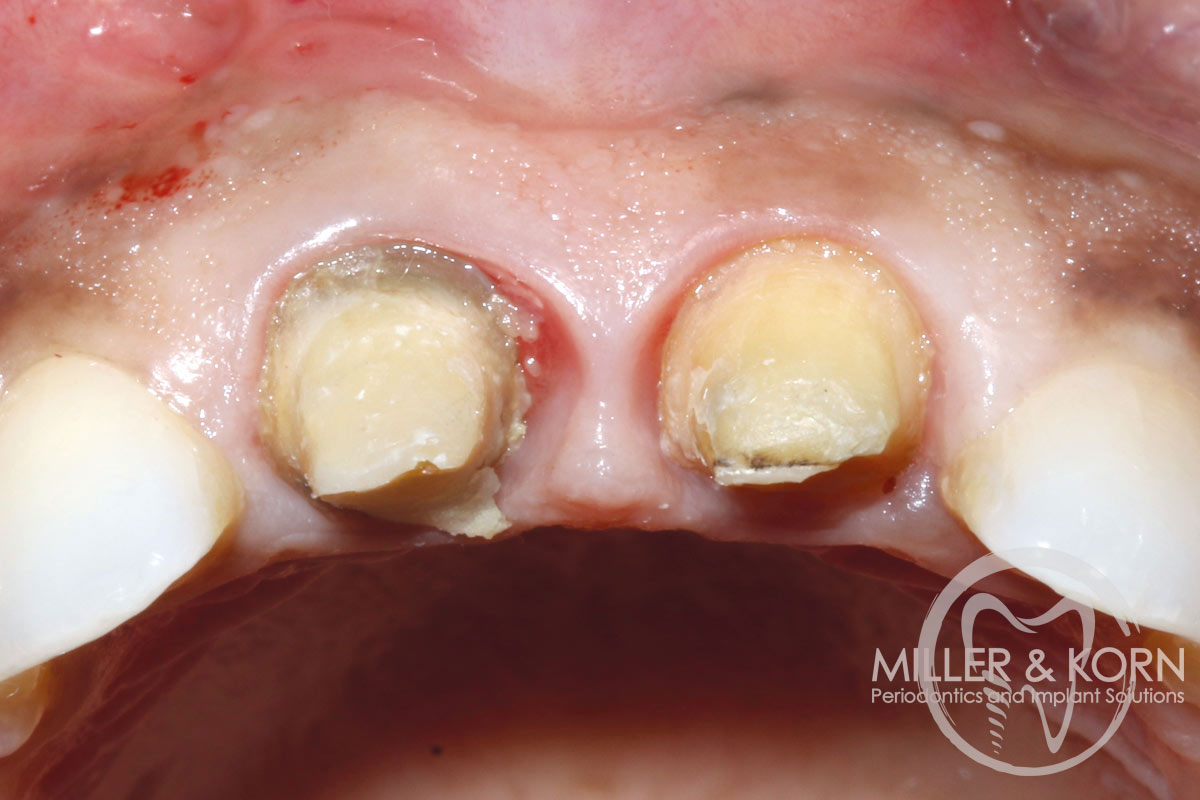

2/22 - She experienced trauma as a child and had fractured both tooth #8 and 9 which had been crown several times for esthetics.
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -

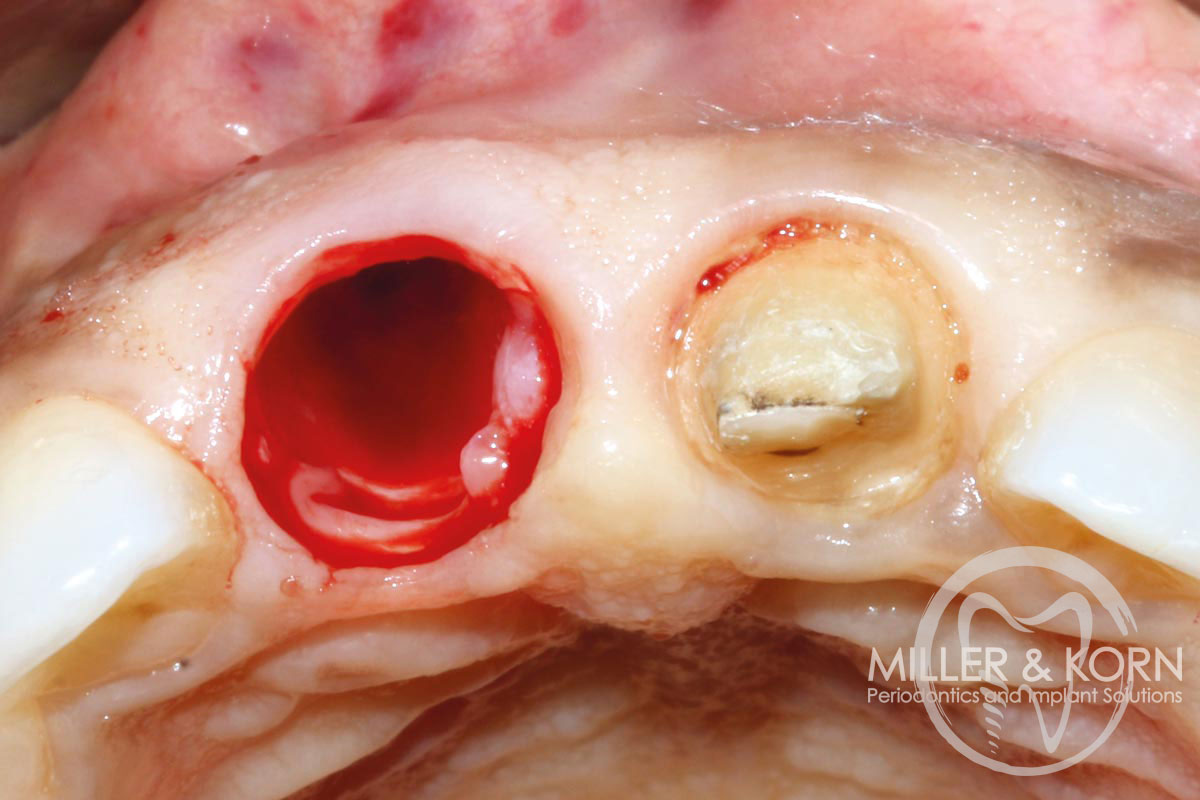

3/22 - Atraumatic extraction of tooth #11
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -

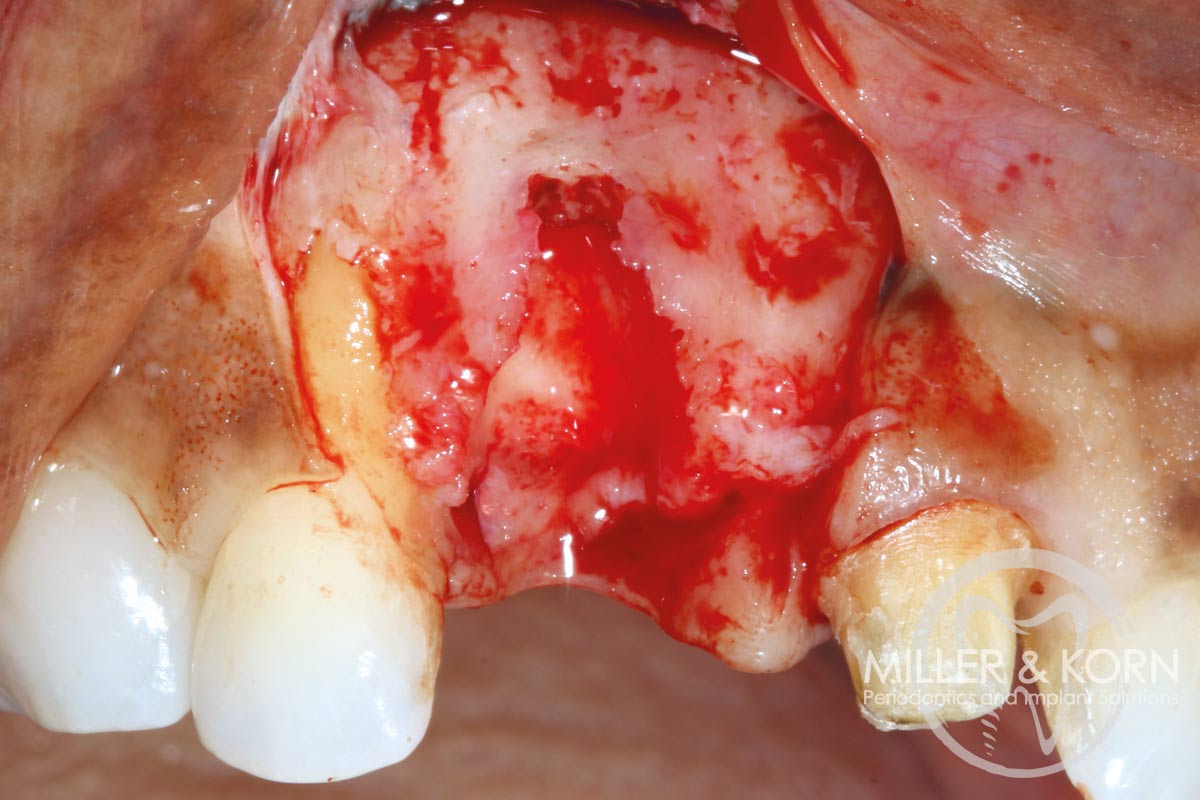

4/22 - Full thickness flap elevation with vertical releasing incisions. Note, significant apical and buccal bone resorption after raising the flap
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -

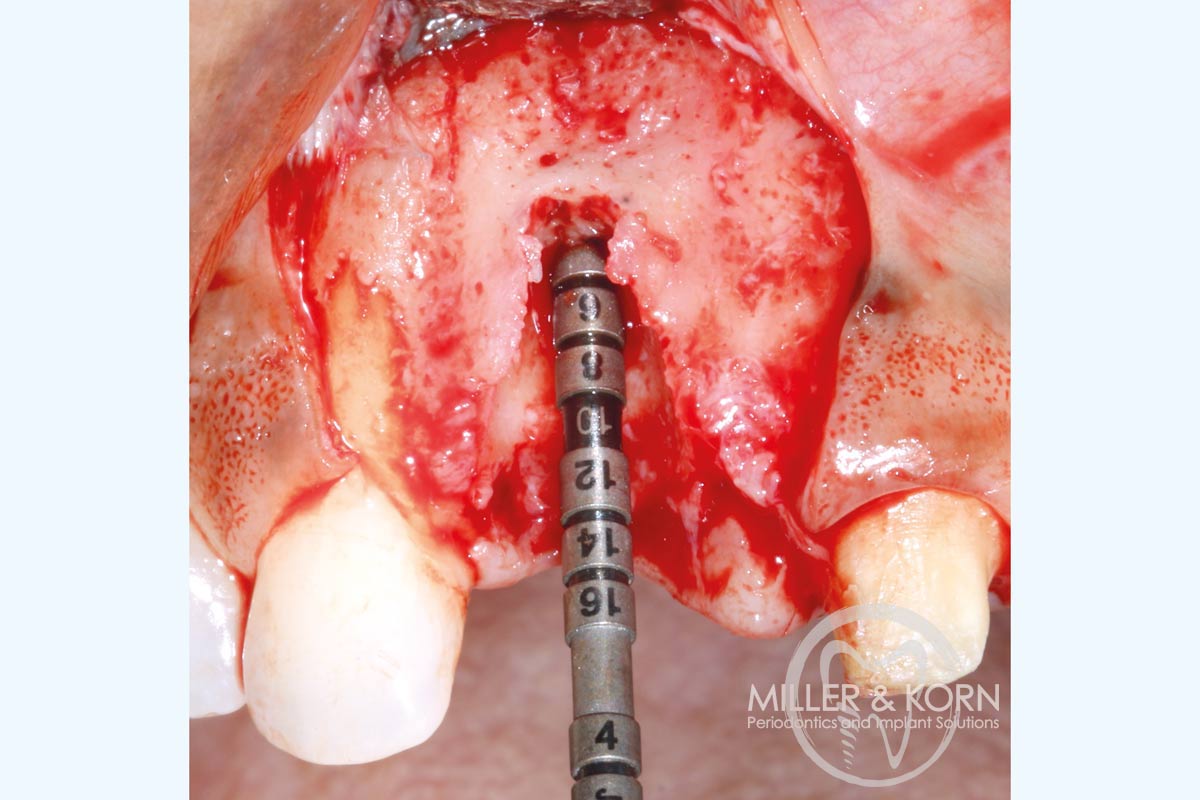

5/22 - Implant direction indicator.
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -

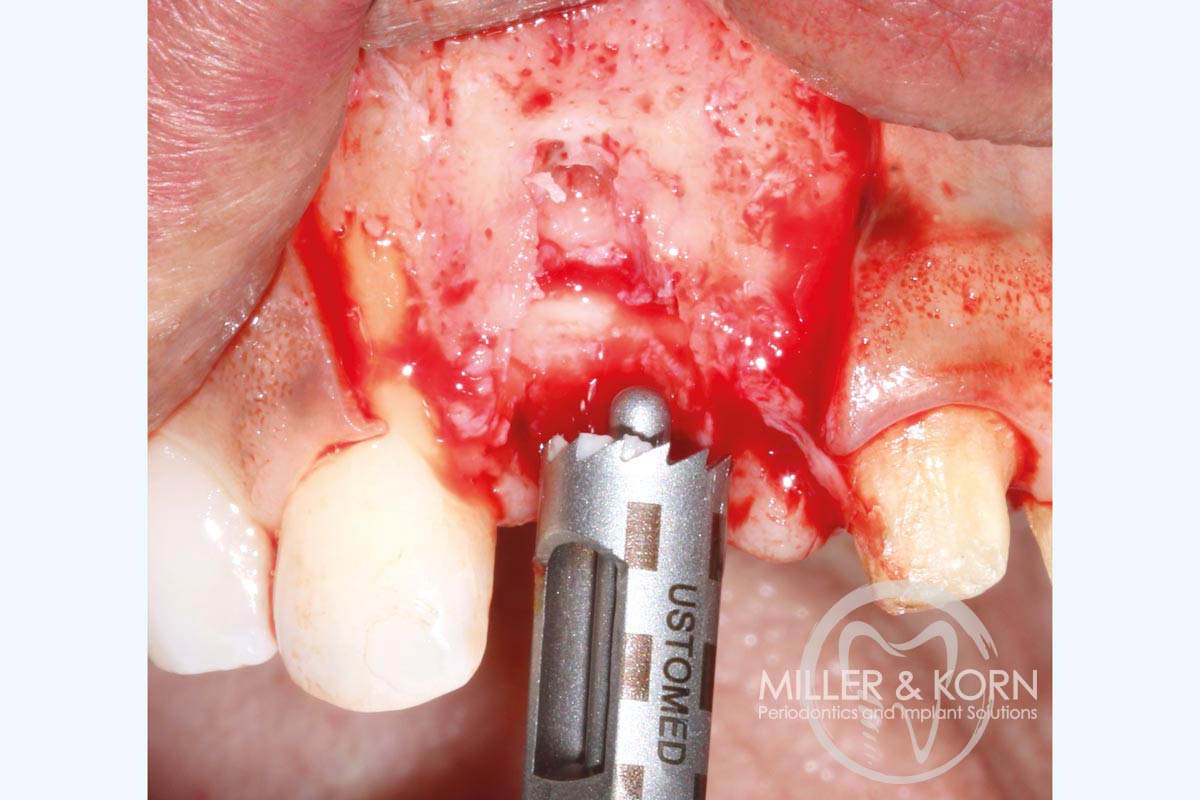

6/22 - Trephine drilling to prepare the site for the allograft ring.
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -
7/22 - Collecting autogenous bone chips.
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -

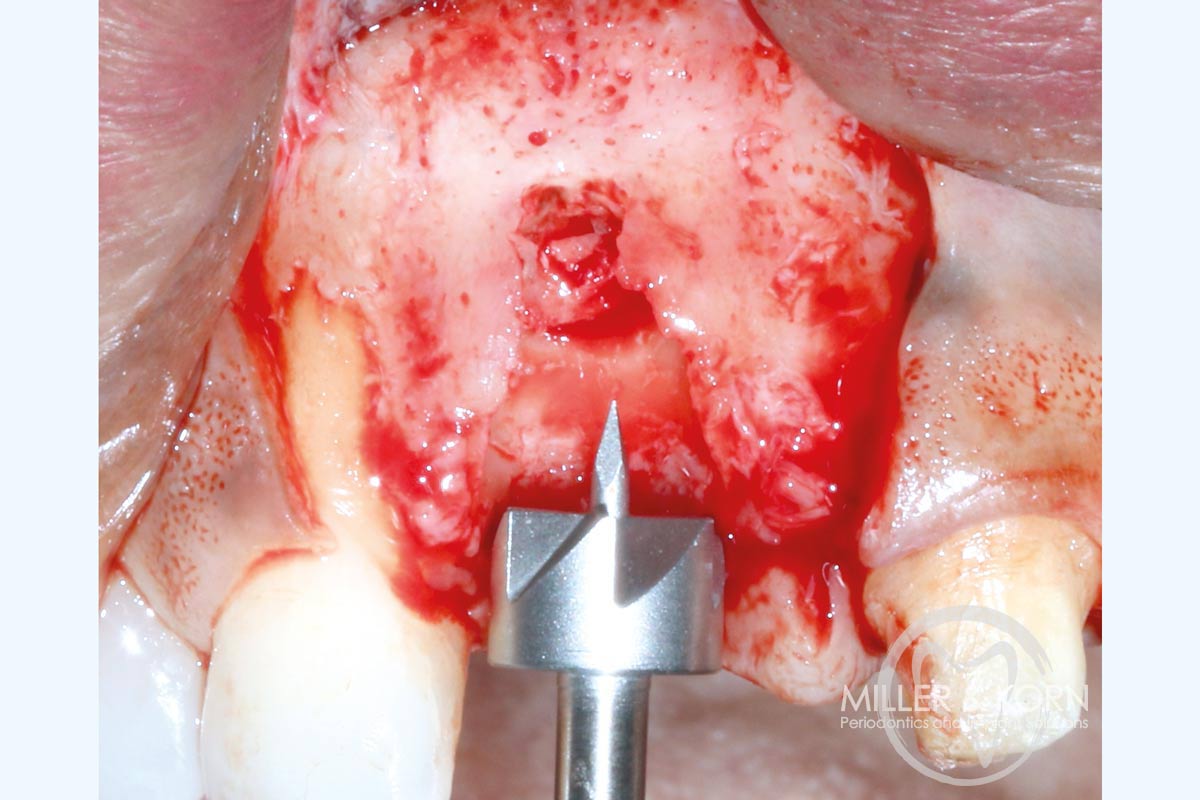

8/22 - Use of the planator to create a uniform ring bed.
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -

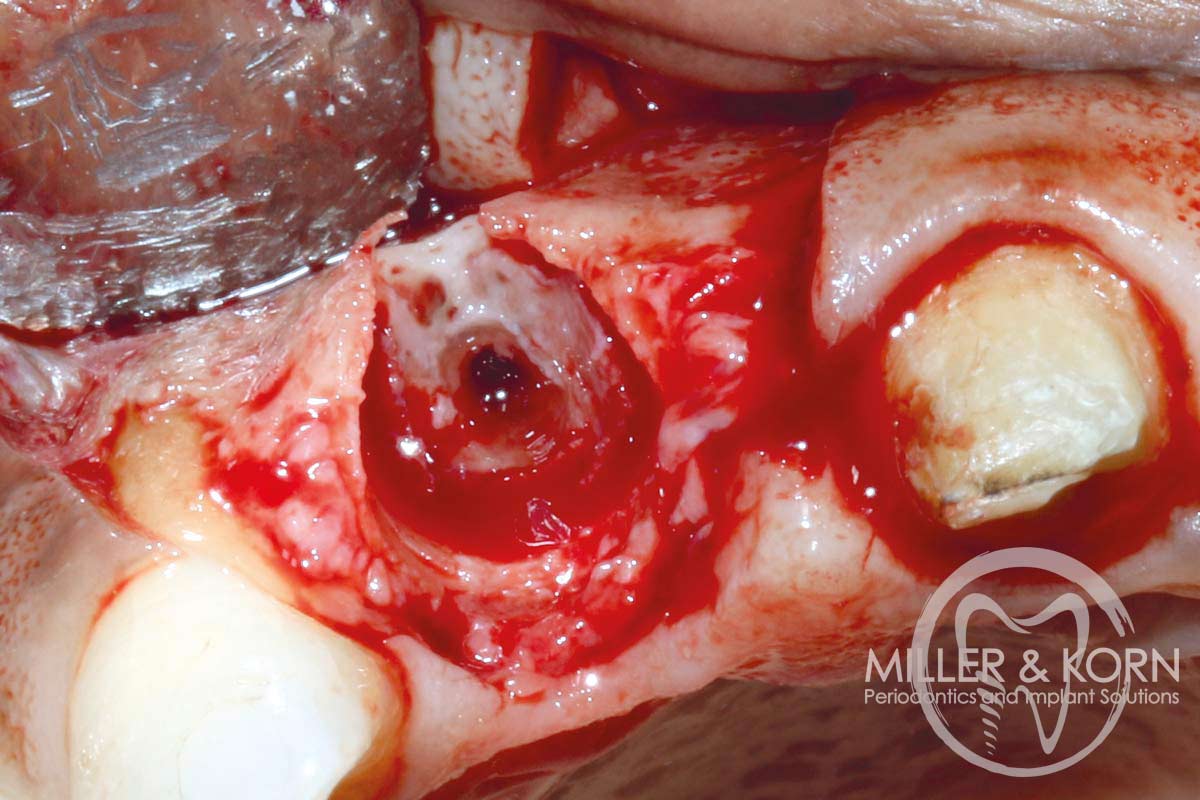

9/22 - Occlusal view of the prepared recipient ring bed.
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -

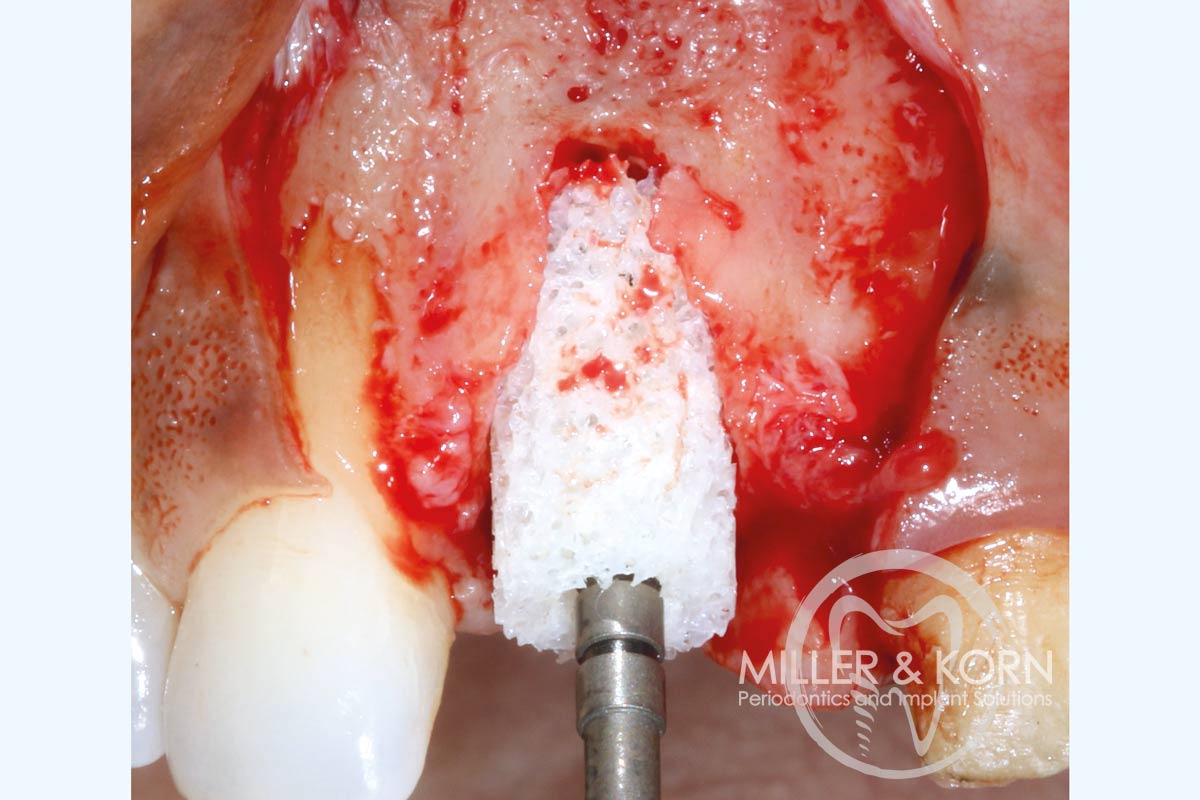

10/22 - Allograft bone ring in place.
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -

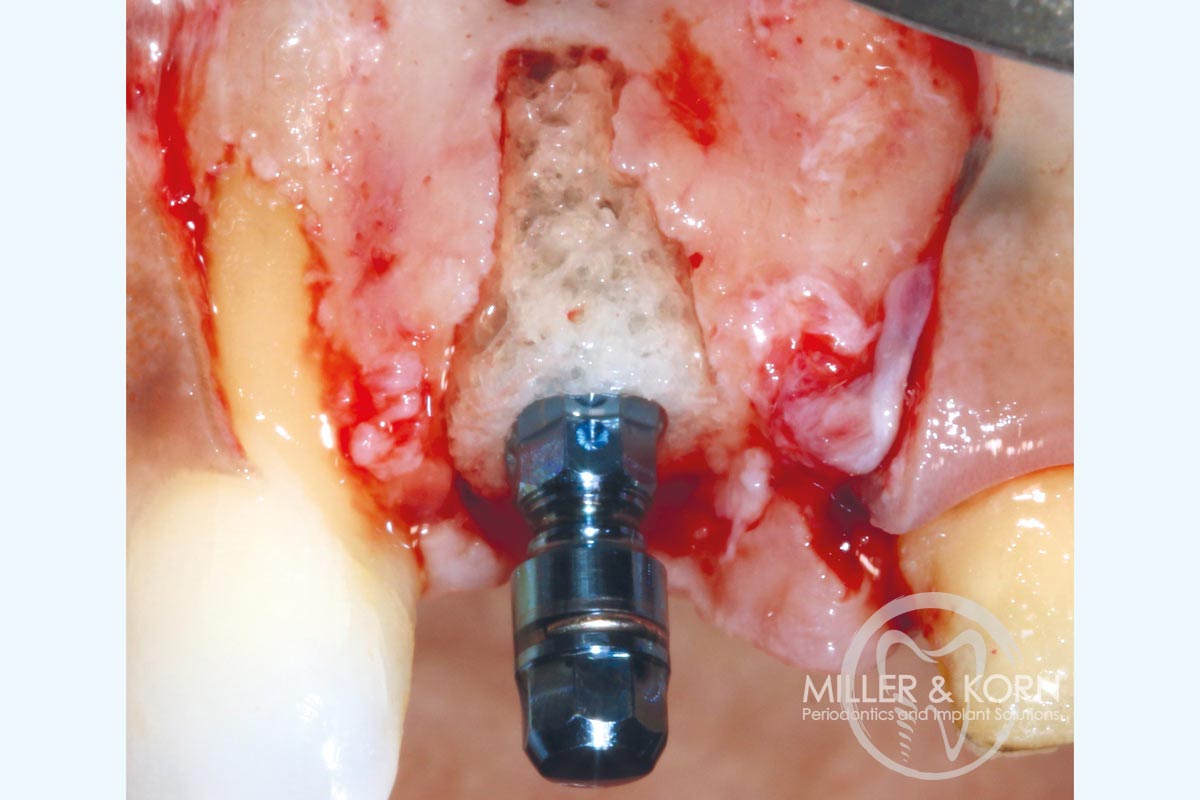

11/22 - Implant placement in order to fixate the ring.
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -

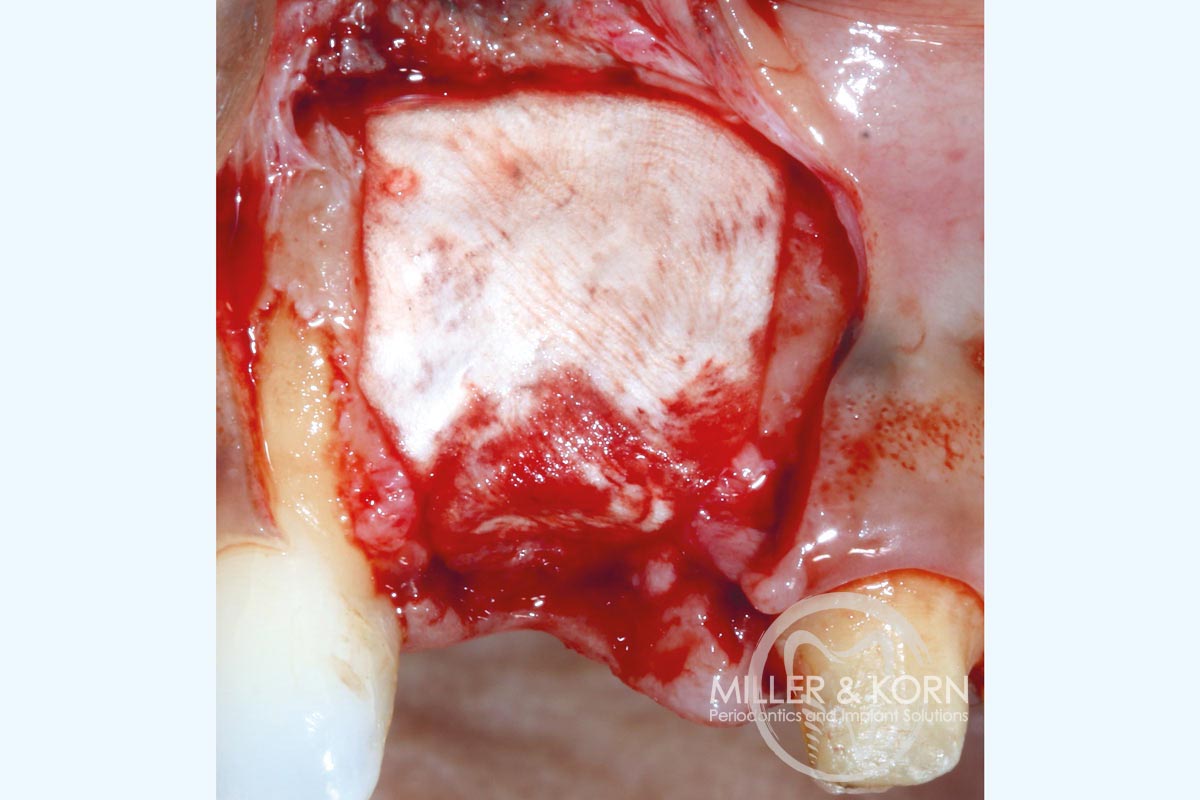

12/22 - Jason® membrane.
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -
13/22 - Cutting the membrane to the appropriate shape.
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -
14/22 - Covering the site with bone substitute and Jason® membrane.
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -

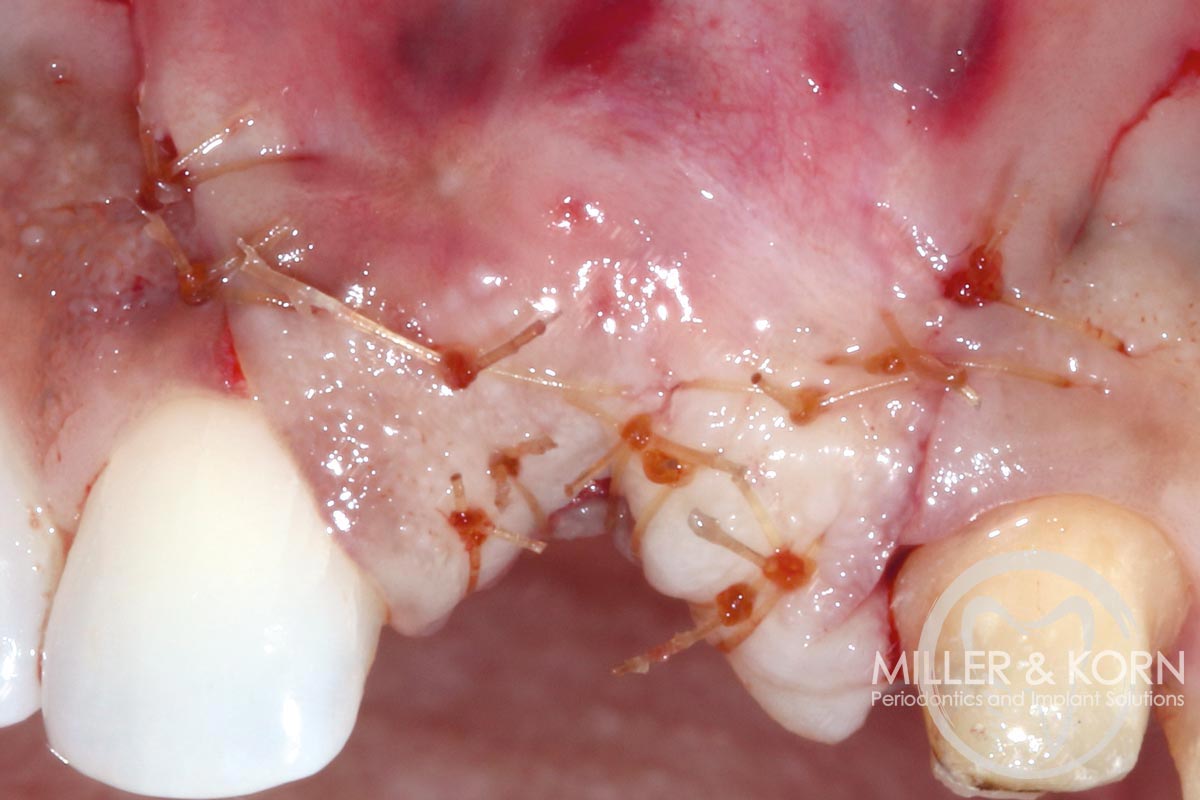

15/22 - Closing the flap.
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -
16/22 - Healing after four weeks
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -
17/22 - Uneventful healing after 6 months.
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -

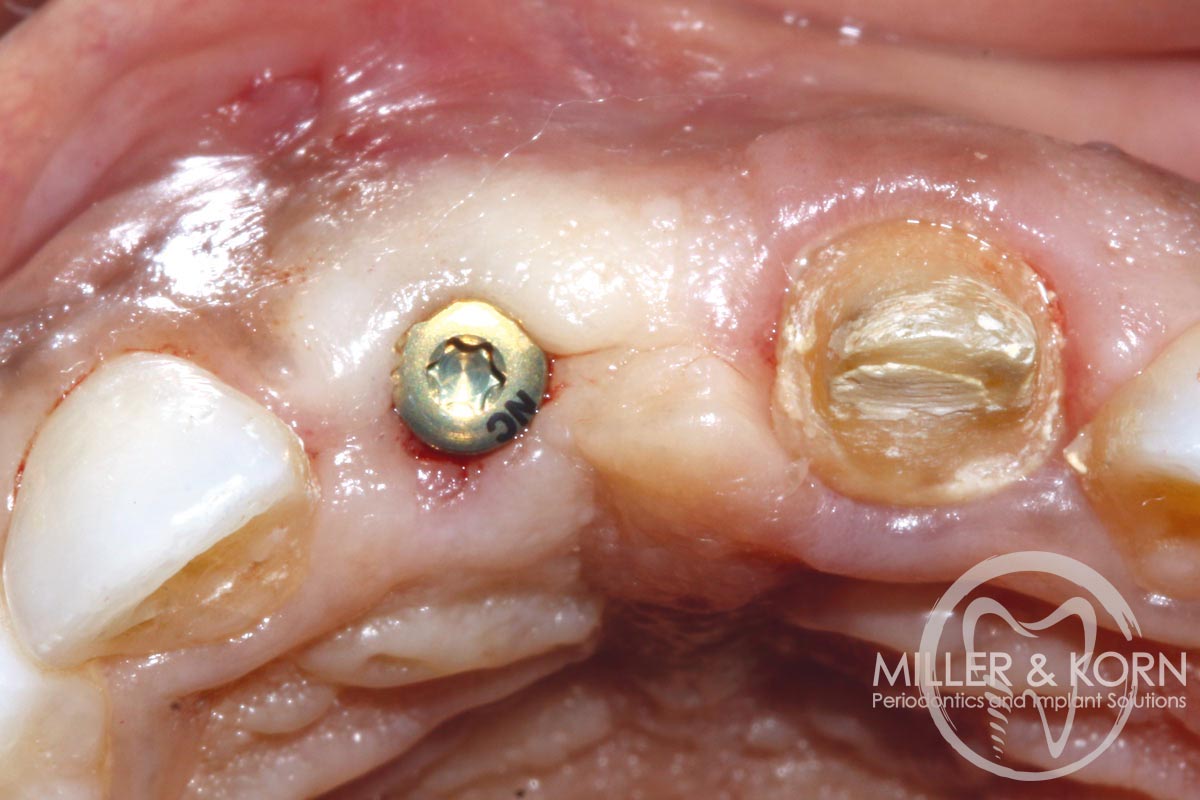

18/22 - Placement of healing abutment. Note buccal convexity
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -

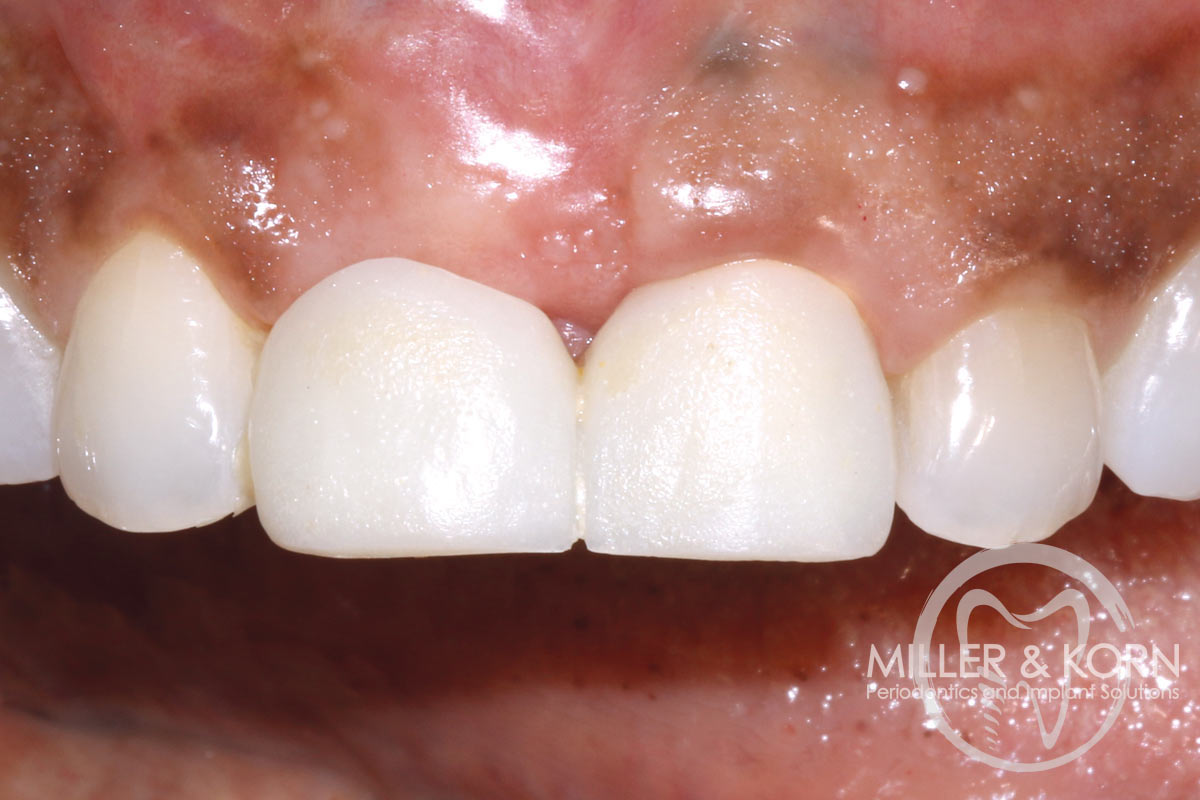

19/22 - Temporary prosthesis
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -
20/22 - Smile one-week post insertion of final prosthesis
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -
21/22 - Radiographs during therapy.
Immediate implant placement and regeneration of ridge using an allograft bone ring and Jason® membrane - Drs. Miller and Korn -

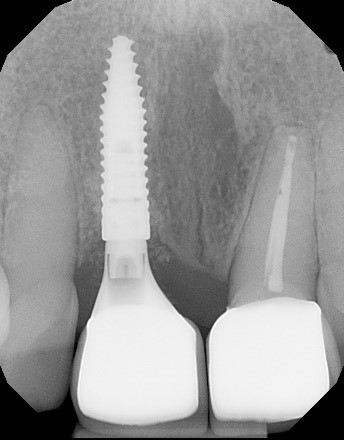

22/22 - Final radiograph one week post insertion.
